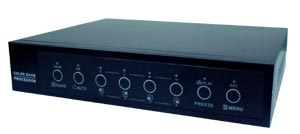

QUAD-404
Colour 4-Channel Colour Digital Quad Processor
|
Specifications:
| Refresh Speed: NTSC: |
30F/SEC |
| PAL: |
25F/SEC |
| Picture Pixels: NTSC: |
860(H) X 525(V) |
| PAL: |
860(H0 X 625(V) |
| Signal Standard: |
NTSC/PAL |
| Signal Input: |
4 Channels, Composite 1.0Vp-p, 75Ω, BNC |
| Video Signal Output: |
Output to Monitor, Composite 1.0Vp-p, 75Ω, BNC Output to Quad, Composite, 1.0Vp-p, 75Ω, BNC
Output to VCR, Composite, 1.0Vp-p, 75Ω, BNC |
| Output Features: |
Full Screen/Quad/Freeze/ Auto Switch/PIP |
| Sequential Switching: |
1-99 seconds, adjustable skip feature. |
| Channel Name: |
Display Available |
| Clock Function: |
Year/month/day display |
| Power Supply: |
DC12V |
| Operating Current (Max): |
800mA |
| Relative Humidity: |
<=95%, No condensation |
| Operating Temperature: |
-10℃~50 ℃ |
| Dimension (L x W x H) mm: |
218 x 198 x 43 |
| Net Weight: |
1.0kg |
| Accessories: |
User's Manual, Fuse, Power adaptorDC12V |
|
